Anchorage, Implants
and Extra-Oral Products

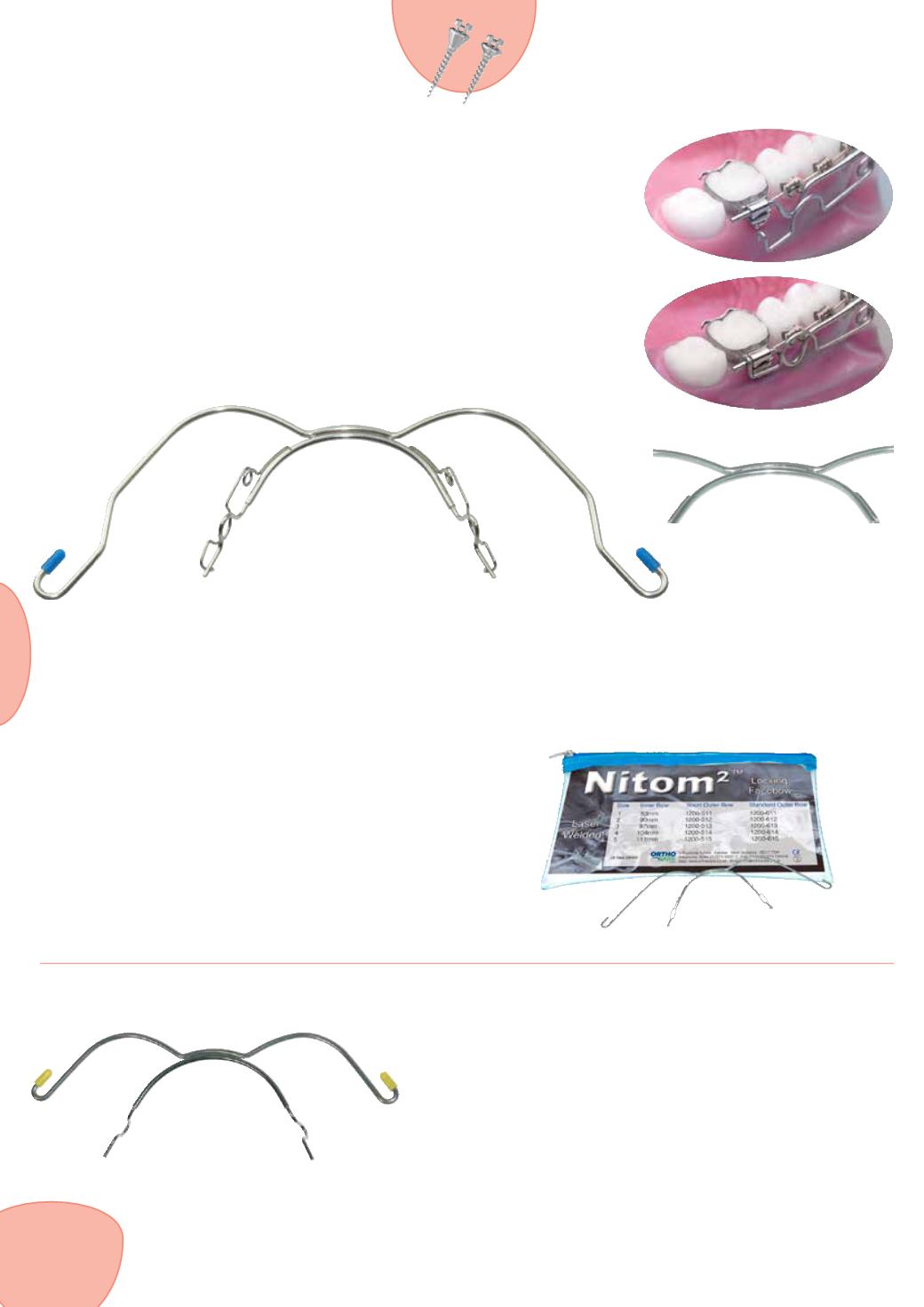

Nitom2™ Safety Locking Facebow
The only locking facebow available has been improved with laser welding.
Nitom2 locks the facebow into buccal tubes, greatly reducing the risk of injury to patients.
• Easily locked or removed from buccal tubes
• Fits most standard* Tubes .045”(1.13mm)
• British design - Dr. Russell H. A. Samuels Consultant Orthodontist
• Standard size outerbow (can be shortened if required)
* Will not fit tubes with facebow stop.
Nitom facebows come in several inner bow sizes with two lengths of outer bow, standard and short. The catch is spring loaded and
unlocked by squeezing the catch and inner bow together.
In the pictures shown at the top, one catch is unlocked, the other locked. The correct size of facebow can be chosen with the aid of the
patient’s upper study model for fixed appliance upper first molar bands. The inner bow can be contracted or expanded to position the
ends of the inner bow next to the upper first molars. When used with a removable or functional appliance the technician can select, adjust
and fit the correct size of facebow. Sold individually.
Size Inner Bow Size Short Outer Standard
Bow Outer Bow
1 83mm/3.27” 1200-511 1200-611
2 90mm/3.54” 1200-512 1200-612
3 97mm/3.81” 1200-513 1200-613
4 104mm/4.09” 1200-514 1200-614
5 111mm/4.37” 1200-515 1200-615
Multiple Purchase Discounts Available
LASER WELDED
Actual Size Short Outer Bow
Vertical Loop Facebows
Inner bow diameter .045”/1.13mm
Size Inner Bow Size Super Short Short Standard
Outer Bow Outer Bow Outer Bow
1 83mm/3.27” 1200-001 1200-011 1200-031
2 90mm/3.54” 1200-002 1200-012 1200-032
3 97mm/3.81” 1200-003 1200-013 1200-033
4 104mm/4.09” 1200-004 1200-014 1200-034
5 111mm/4.37” 1200-005 1200-015 1200-035
