Anchorage, Implants
and Extra-Oral Products

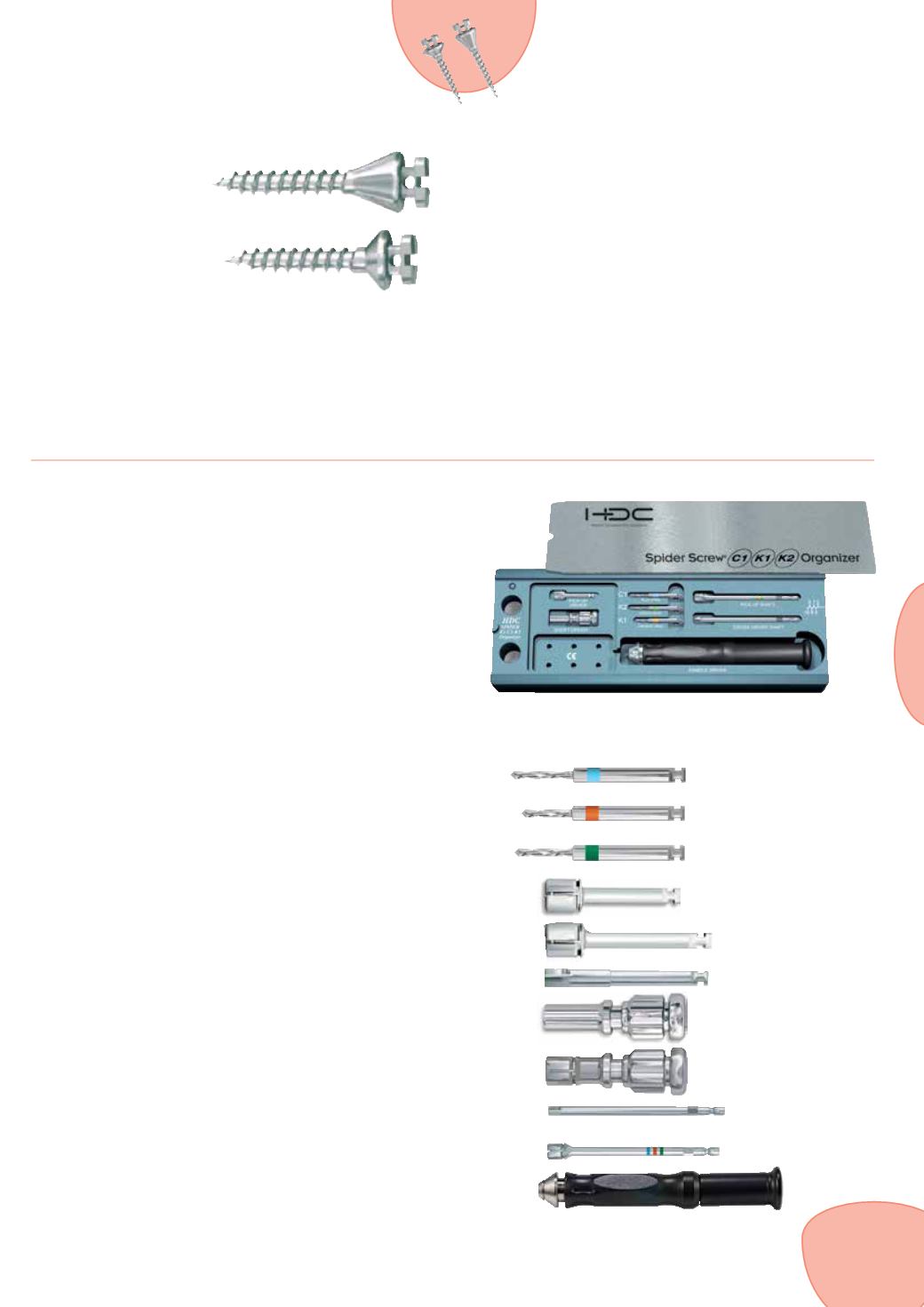

Spider
C1 Ø1.5mm
Cylindrical Thread (Pre-drilling/Self-tapping)
Available in 6.5, 8 and10mm lengths.
The Spider Screw - C1 is self-tapping and requires pre-drilling with a
drill of diameter 1.2mm. Available in the following versions:
LONG NECK - elongated neck height (2mm) for areas of thick tissue
(Posterior and lateral areas).
SHORT NECK - standard neck height (1mm) for areas of thin tissue
(Anterior and lateral areas).
Long Neck - 2.0mm
O/No
Ø 1.5 x 6.5mm
7SLP-1506
Ø 1.5 x 8.0mm
7SLP-1508
Ø 1.5 x 10.0mm
7SLP-1510
Standard Neck - 1.0mm
Ø 1.5 x 6.5mm
7SSM-1506
Ø 1.5 x 8.0mm
7SSM-1508
Ø 1.5 x 10.0mm
7SSM-1510
Multiple Purchase Discounts Available
Screws sold individually
Spider Screw
®
C1, K1, K2 Starter Kit
Entire Kit can be sterilised
•
Autoclavable up to 273
o
F/134
o
C
•
Heat sterilisable up to 356
o
F/180
o
C
•
Chemiclavable up to 297
o
F/132
o
C
O/No
7CSS-4009
Screws not included with kit. Screws available individually.
Kit Organiser contains:
1 x 1.2mm x 10.0mm Drill C1
O/No
7FSC-1210
1 x 1.1mm x 8.0mm Drill K1
O/No
7FSC-1108
1 x 1.3mm x 9.0mm Drill K2
O/No
7FSC-1309
1 x Contra Angle Pick-Up Driver
O/No
7DPQ-2820
1 x Contra Angle Pick-Up Driver Long
O/No
7DPQ-2825
1 x Contra Angle Cross Driver
O/No
7DPX-2830
1 x Handle Driver Short
O/No
7DSQ-2824
1 x Pick-Up Handle Driver
O/No
7DPH-2824
1 x Cross Driver Shaft for 7DSX-1690S
O/No
7DSX-2852S
1 x Pick-Up Driver Shaft for 7DSX-1690S
O/No
7DSP-5052S
1 x Screw Driver Body
O/No
7DSX-1690S
